Temperature Alarm Unit DEG 3600

Control and Monitor Pt-Temperature Signals

The Alarm Unit DEG 3600 is used to monitor limit values and regulate simple automation processes in temperature measuring applications with Pt-Sensors.

  • Easy selection of operating mode
    MIN/MAX alarm switch selectable, switch point and hysteresis adjustable on front panel
  • Relay with high power handling
    SPDT relay with 6 A current switch capability
  • True 4-port separation
    Protection against erroneous measurements due to parasitic voltages or ground loops
  • Switch state indicated by LED
    Easy to adjust the set point and hysteresis
  • Protective Separation acc. to EN 50178
    Protects service personnel and downstream devices against impermissibly high voltage
  • High reliability and long-term stability
    No maintenance costs
  • Unlimited use with 24 V AC/DC power supply
    Universally applicable for all measurement and industrial applications
  • 5 Years Warrant
    Defects occurring within 5 years from delivery date shall be remedied free of charge at our plant (carriage and insurance paid by sender)

The Alarm Unit DEG 3600 is used to monitor limit values and regulate simple automation processes in temperature measuring applications with Pt-Sensors.

High reliability and Protective Separation are essential characteristics that contribute to fault-free equipment operation.

Two switch channels can be separately configured. The switch point and the switch hysteresis can each be adjusted by means of their own 12-turn potentiometer located on the unit’s front panel. The switch state is indicated by a yellow LED.

The direction of effect and the mode of operation can be switched by means of DIP switch settings. Both switch outputs can be set up as either MIN or MAX alarms. The relay contacts switch high power loads either as N.O. or N.C. contacts.

Protective Separation and the 24 V AC/DC power supply make the DEG 3600 universally applicable for all measurement and industrial applications, as well as for building automation.

Technical Data

Input

Sensor Input
Pt100 Pt200 Pt500 Pt1000 (switchable)
Sensor current
1 mA 0,5 mA 0,2 mA 0,1 mA
Sensor connection 3-wire connection / 2-wire connection, switchable
Wire resistor < 10 Ohm per wire
Temperature measuring range
Zero -100 °C -50 °C 0 °C +50 °C (switchable)
Span 100 K 200 K 300 K 400 K (switchable)
Set point range 0 ... 100 % of input range with 12-turn potentiometer, MIN/MAX-Alarm switchable
Hysteresis 0 ... 60 % of final value with 12-turn potentiometer

Output

DEG 3600:
    Contact type
    Switching capability
2 SPDT relays, mode of operation switchable
250 V AC/DC, max. 6 A, max. 1500 VA
DEG 3680:
    Contact type
    Switching capability
2 transistor switches, mode of operation switchable
30 V DC, max. 50 mA
Switch state indicator Yellow LED
Response time Approx. 20 ms

General Data

Set point error 0.2 % of final value
Temperature coefficient 1) 150 ppm/K of final value
Test voltage 4 kV, 50 Hz, input against power supply against relay
2.5 kV, 50 Hz, relay I against relay II
Working voltage 2)
(Basic Insulation)		 Up to 600 V AC/DC for overvoltage category III and pollution degree 2 acc. to EN 50178 between input, power supply and relay outputs.
Up to 300 V AC/D between both relay outputs.
Protection against
electrical shock 2)		 Protective separation according to EN 50178 by reinforced insulation up to 300 V AC/DC for overvoltage category II and pollution degree 2 between input, power supply and relay outputs.
Power supply 24 V AC/DC, ± 15 % AC: 48 ... 62 Hz, approx. 2 VA
DC approx. 1 W
Ambient temperature Operation
Transport and storage		 –20 °C to +60 °C
–35 °C to +85 °C
EMC 3) EN 61326 -1
Construction 22.5 mm housing, protection class: IP 20
Weight Approx. 100 g
  1. Average TC in specified operating temperature range
  2. As far as relevant the standards and rules mentioned above are considered by development and production of our devices. In addition relevant assembly rules are to be considered by installation of our devices in other equipments. For applications with high working voltages, take measures to prevent accidental contact and make sure that there is sufficient distance or insulation between adjacent situated devices.
  3. Minor deviations possible during interference

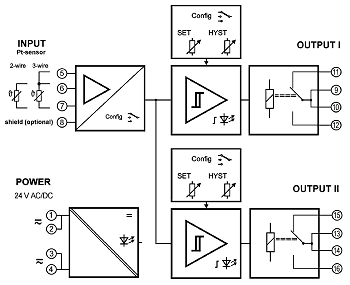

Block diagram

Dg3600

Dimensions

GehaeuseLimiter

Terminal assignments

5,6 Pt Input 11 N/C
7 Pt Input 9,10 Output I
8 Shield (opt) 12 N/O

1,2 Power Supply ~ 15 N/C
3,4 Power Supply ~ 13,14 Output II
    16 N/O

Product line

Device Order No.
Temperature Alarm Unit with relay contacts DEG 3600
Temperature Alarm Unit with transistor contacts DEG 3680
